Overview of Injection Molding Machines

Injection Molding Machines

What are Injection Molding Machines?

Injection molding machines, also known as injection molders or injectors, are the primary equipment for injection molding. They use plastic molds to mold thermoplastic or thermosetting plastics into various shapes. Injection molding machines are widely used in multiple fields, including mechanical parts, the defense industry, telecommunications, transportation, instrumentation, electronics, electrical, aviation, construction, agriculture, medicine, and everyday life.

The working principle of an injection molding machine mainly utilizes the thermophysical properties of plastics. The material is added from the hopper into the barrel, heated by heating rings around it to melt it. The melted material is then injected into the mold cavity through the rotation and pushing action of the screw. After a period of pressure holding, cooling, and solidification, the mold opens, and the ejection mechanism ejects the finished product.

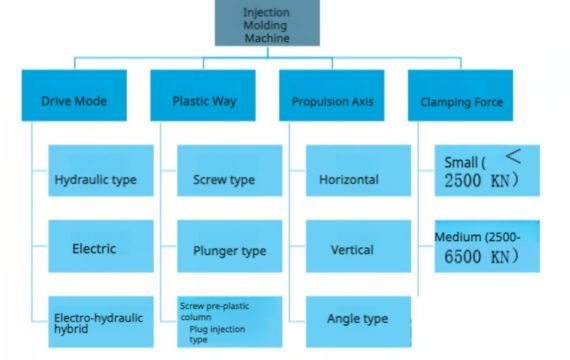

Types of Injection Molding Machines

Several injection molding machines exist, categorized into horizontal, vertical, angle, and multi-station rotary based on their structural form.



Types of Injection Molding Machines

Horizontal injection molding machines: This machine’s mold clamping and injection parts are on the same horizontal center line, while its mold opens horizontally. Furthermore, its low profile makes it easy to operate and maintain. Its low center of gravity ensures stable installation. When the products are ejected, they can fall automatically due to gravity, facilitating fully automated operations. This form is currently widely used in the market.

Vertical injection molding machines: They are referred to as such because both the mold clamping section and the injection section are aligned along a single vertical centreline, and the mold opens vertically. This makes them take up less space, have space for easy component insertion, and facilitate mold loading and unloading conveniently, among others. Materials supplied from the hopper can be homogenized more uniformly. However, once they have been molded from these machines, they will not automatically be dropped; hence, someone has to remove them manually, making incorporating automation in its processes challenging. Vertical injection molding machines are recommended for small-scale operations or where shot weight is less than 60 grams per machine shot size, but not on larger or medium-sized models.

Angular injection molding machines: This kind of injection molding machine is applicable for small-size machines because the machine tool’s injection direction and mold parting line are in one place, which makes it especially appropriate for manufacturing flat products with no gate marks in the central part. It takes up less space than horizontal injection molding machines; however, inserts put into the mold can tilt and fall.

Multi-Station Rotary Injection Molding Machine: This variant is intended for multi-station working. It uses a mold clamping device with a rotary table structure, where molds rotate around the central axis. It entails an injection unit with a maximal Plasticizing capacity and can reduce production cycle time and output. This type of machine is especially useful in producing large-scale products that require longer cooling and setting or additional auxiliary time for positioning inserts. Nonetheless, because of its bulky build-up and intricate mold clamping system, the machine’s clamping force is usually relatively low, thus making it more frequently used to produce plastic soles, among other similar products.

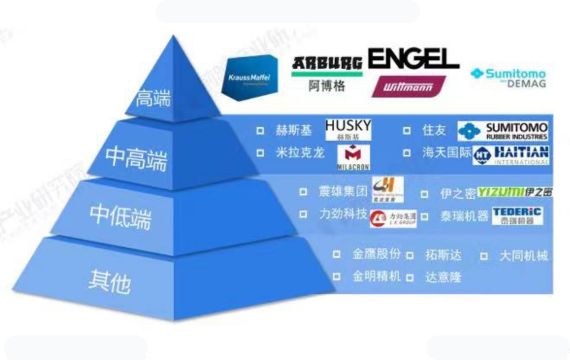

Generally, China has largely achieved import substitution in mid-to-low-end product lines, so the domestic market share of domestic-made injection molding machines has risen from less than 50% to over 70%. However, the production of high-end injection molding machines requires greater precision and stability. This means that until now there are still some technological bottlenecks for Chinese manufacturers as almost 15% of high-end designs are imported, hence foreign companies dominate in the mid-to-high end market.So there are also many china mold clamp factories to suit with these brands injection molding machines.

Leading domestic brands like Krauss Maffei, Haitian International, Yizumi, and Tederic Machinery dominate the mid-range market. Meanwhile, the mid-to-high-end market is occupied by foreign manufacturers such as ARBURG, ENGEL, Wittmann Battenfeld, and DEMAG.

Top 10 Injection Molding Machine Manufacturers in the World

  1. Husky: Husky Injection Molding Systems Limited provides its main market customers with molds, systems, and services using a range of injection molding machinery, hot runners, robots, molds, and complete systems.
  2. KraussMaffei: The brand name of the KraussMaffei was established in Schwabing, Munich, in 1838. It resulted from the merging together of Krauss with Maffei in 1930. Bought by ChemChina Group in January 2016, the company has five series of injection molding machines – they are AX, CX, EX, GX, and MX ranges that have clamping forces between thirty-five to five thousand five hundred tons which can be powered either through hydraulic or electric motors; a few also have hybrid drivetrains.
  3. Netstal: Established in Switzerland in 1857, Netstal is based in Näfels, Glarus. The firm started as a maker of casting machinery and expanded into injection molding in 1945 before it was bought by the KraussMaffei group in 1992. Injection molding specialists, Netstal focuses on the technically demanding packaging of drinks and medical technology sectors, which involve developing complex thin-walled plastic components at the forefront of the globe concerning the injection molding process.
  4. Arburg: Arburg is a German equipment manufacturer that is among the leading manufacturers of plastic processing injection molding machines. It manufactures plastic parts for the automotive communications, entertainment electronics, medical technology, domestic appliances, and packaging industries.
  5. Demag: One of the largest general trading companies worldwide, Sumitomo Corporation, purchased Demag to concentrate its business within Europe. Demag is an injection molding machine brand owned by Sumitomo Heavy Industries Euromap Company, which was bought from Sumitomo Heavy Sumitomo Mitsui Construction Co., Ltd..
  6. Engel: Engel was established by Ludwig Engel in Austria in 1945 when he invented the first machine capable of performing this function. Several decades later, other technologies were developed requiring different types of materials, such as rubber, metals, plastics, etc., making their use increasingly attractive to manufacturers worldwide who wanted more efficient ways of producing their goods.
  7. Wittmann Battenfeld: Established in 1876, the company was founded in Bohemia and specializes in hydraulic, electric, micro-injection, and multi-color injection molding machines. Its precision scientific research equipment is second to none among all other machines on today’s market; it is also immensely rapid and precise.
  8. Sumitomo sells about 119,800 units of Japan-made injection molding machines globally, as the EV-A., EV-HD, and SEEV-A-LGP series are used in various areas. Since its establishment, Sumitomo Injection Molding Machines has been able to sell 119,800 units worldwide.
  9. Fanuc: Fanuc was created in 1956 and became internationally operational in manufacturing. They are pioneers of electrically powered injection molding machines, especially for the electrical industry.
  10. Milacron: A complete line of injectable plastic processing equipment such as injections force monitor (ENKI), hot runner controllers (TempMaster ZoneMaster), mold temperature control devices (TCS), and many others, including those involved with blow molding itself, e.g., EBM single stage bottles or stretch double preform-stretch blow processes are manufactured by Milacron Inc. It can be bought from them either individually or in part sale package depending upon specific requirements each customer may have expressed which means they offer flexibility when it comes down to making decisions about how we want our product packaged.

In recent years, the rapid development of China’s plastic industry has significantly advanced the injection molding machine sector. Accompanied by the entry of many internationally renowned injection molding machine brands from Europe, America, Japan, and Korea and the rapid popularity of Chinese injection molding machine companies, market competition has also become increasingly intense. Overall, domestic injection molding machine brands now have a higher market share.

Top 10 Injection Molding Machine Manufacturers in China

Here are some of the top injection molding machine brands from China, known for their innovation, quality, and market presence:

  1. Haitian International Holdings Limited is the world’s largest manufacturer of injection molding machines, known for its cost-effective and reliable machinery.
  2. Yizumi Precision Machinery Co., Ltd. – Yizumi is a rapidly growing company offering a wide range of injection molding machines, including precision and energy-efficient models.
  3. Chen Hsong Holdings Limited – Established in 1958, Chen Hsong is one of China’s oldest and most experienced manufacturers of injection molding machines.
  4. Tederic Machinery Co., Ltd. – Known for its wide range of products, Tederic offers everything from high-speed packaging systems to two-platen machines.
  5. Bole Machinery – Bole is known for its innovative “EKS” series of machines, which feature a unique toggle design for enhanced stability and speed.
  6. Powerjet Plastic Machinery Co. Ltd. – Powerjet offers a comprehensive range of injection molding machines and is known for its high-speed and precision models.
  7. Guangdong Kaiming Engineering Co., Ltd. – Kaiming is well-regarded for its large-tonnage injection molding machines, which are popular in automotive and other large-part production.
  8. Ningbo Haida Plastic Machinery Co., Ltd. – Haida specializes in producing high-performance, cost-effective injection molding machines.
  9. K. Technology Holdings Limited—L.K. Group is known for producing highly efficient, technology-driven machines for various industries.
  10. Victory Plastic Technologies – Victory focuses on innovative solutions like hybrid and all-electric machines, catering to a global clientele.

These brands represent a significant portion of the Chinese injection molding machine market, offering various technologies ranging from hydraulic and all-electric machines to hybrid models. Each brand has its strengths, catering to different segments of the plastic processing market.
