Yushine provides high-grade Plastic Shredder Machine for Recycling

Centralized Crushing&Recycling

Plastic crushers also known as plastic shredders, can break various plastic wastes into smaller pieces for easy recycling, and then reuse the wastes as regrind materials. Sometimes the regrind materials are mixed with raw materials through the proportional valve, conveying to the next plastic processing production, which helps in environmental conservation and reduces costs.

Yushine shredders are especially suitable for materials like PE/PP bucket material, oil jug material, small machine head material, and edge trimmings of sheet material. The blade structure is a reasonable design, featuring external rear-mounted blades for easy disassembly and assembly. Based on the different materials to be shredded, there are three types of blade designs: flat, flake, and claw.

Different types of blades (claw and flake blades) and screens with various hole sizes can be selected. The staggered blades are made of alloy steel, sturdy and durable, capable of being repeatedly sharpened for continued use. Additionally, the upper body of the shredder has a double-layer soundproof design that significantly reduces noise.

Let Yushine custom your particular needs. Send us your inquiries today!

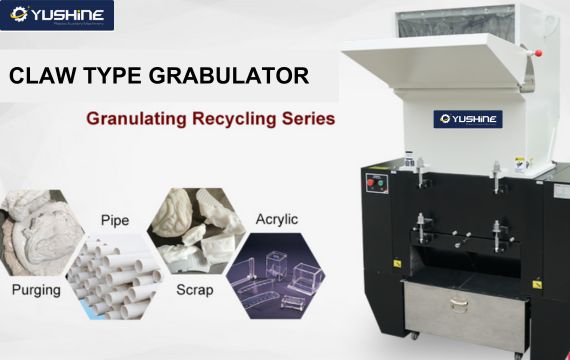

Claw Type Granulator

Yushine plastic claw-type shredder, staggered blade design, designed for quick blade changing without re-adjustment, suited for crushing huge plastic chunks and other tough materials with high hardness, like plastic drums, bottles, pipes, rubber tires, etc. It is widely used in rubber and plastic molding factories and Plays a vital role in plastic pressing and recycling industries.

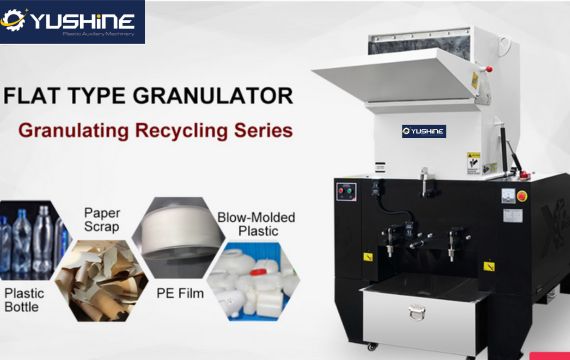

Flat Type Granulator

The SGD series crushers, flat blade structure design, which is ideal for crushing large volume, thin-walled, and thin material products as well as sprues and runners generated by plastic edge materials and wastes. and suitable for recycling plastics such as containers, thin pipe parts, blow-molded items, bottles, PE films, soft rubber, preforms, and shells.

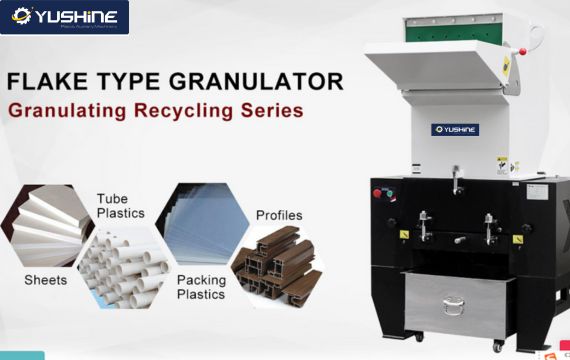

Flake Type Granulator

The SGP series of sheet-type crushers feature a blade structure that is a hybrid of claw and flat blade designs, making them suitable for crushing standard sheet plastics, pipes, profiles, plates, and packaging materials, as well as plastic products and sprues. This universal type of plastic crusher adopts sealed bearings, ensuring that the bearings remain in good condition for a long period.

Highlights of Plastic Shredder Machine for Recycling

High-Strength Cutting Tools
High-Strength Cutting Tools

The cutting blades are made from high-strength alloy tool steel, featuring high hardness and wear resistance. The blades are grindable for repeated use. The main shaft tool holder and the tool body are made of tempered 45# steel.

Widely Application
Widely Application

It Plays an important role in various industrial applications, such as the printing industry, food industry, medical industry, rubber industry, automotive industry, electronics industry, plastics industry, chemical industry, and new energy industry.

Safe
Customized Available

The crusher machine can be customized to crush PA66/PA6+ materials with 20%-50% glass fiber (GF) content, which can greatly extend the machine’s durability. Tell us about your crushing material, and we will help you choose

Cost-Effective
Cost-Effective

Yushine SG series crushers are typically more cost-effective than other types of crushing equipment, making them a good choice for applications where budget is a concern. Featuring thickened machine body with silent and dust-free.

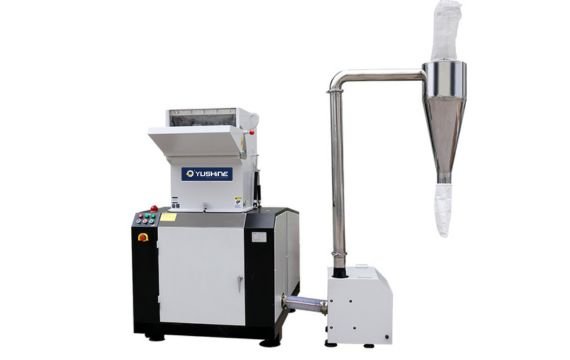

Soundproof Plastic Crusher With Collector

Yushine soundproof shredder is the SG series upgrade, designed to granulate and crush all kinds of plastic waste. It employs high-density soundproofing materials, and thickened double-layer soundproof steel to reduce the noise to 80db.

The crusher comes with a standard feeding system that ensures automatic recycling and refusing materials. It is equipped with a conveying blower and cyclone system. The dust cyclone separator is designed to separate the dust from regrind, this will significantly raise production efficiency.

The feeding hopper is designed with four-sided double-layer soundproofing, filled with soundproof materials in the middle, and can be paired with a fully automatic silent crushing and recycling production line.

Various blades are available for selection, including claw blades, flat blades, flake blades, etc. Customizable screen mesh diameters are available, with standard sizes being 8mm, 10mm, and 12mm, and non-standard sizes being 2mm, 4mm, 6mm, and 14mm.

Yushine soundproof granulator features water-cooling circulation for cooling, achieving energy savings and noise reduction.

Besides the centralized granulator, we also have lower-speed beside-the-press granulator for your needs

Soundproof Plastic Crusher With Collector
Considerations When Buying Shredder

Considerations When Buying Shredder

Before purchasing a plastic crusher or granulator, you must consider various factors to select the most suitable machine for your needs. Here are some key questions to consider:
#1. Type of waste materials?
For example, if you want to process plastic bottles, tubes, or material drums, or Huge plastic chunks, then Yushine staff will recommend the most suitable models. You can send us the pictures.

#2. The required processing speed per hour

The efficiency of the plastic crushing process is influenced by various factors, such as the motor, the number of cutter shafts, and the style of the cutter.

#3.The final size after crushing?

We will determine the screen sieve of the crusher

#4.Soundproof Function

If you require a soundproof plastic recycling crusher, a special design is needed with the whole body. isolated material is designed to absorb and dampen the noise generated during the crushing process.

Why Choose Yushine Plastic Crusher Series

Why Choose Yushine Plastic Crusher

Yushine provides a full range of plastic crusher services. Over 15 years in this industry, we have established consistency in plastic machinery production. We specialize in small and large-scale plastic auxiliary equipment.

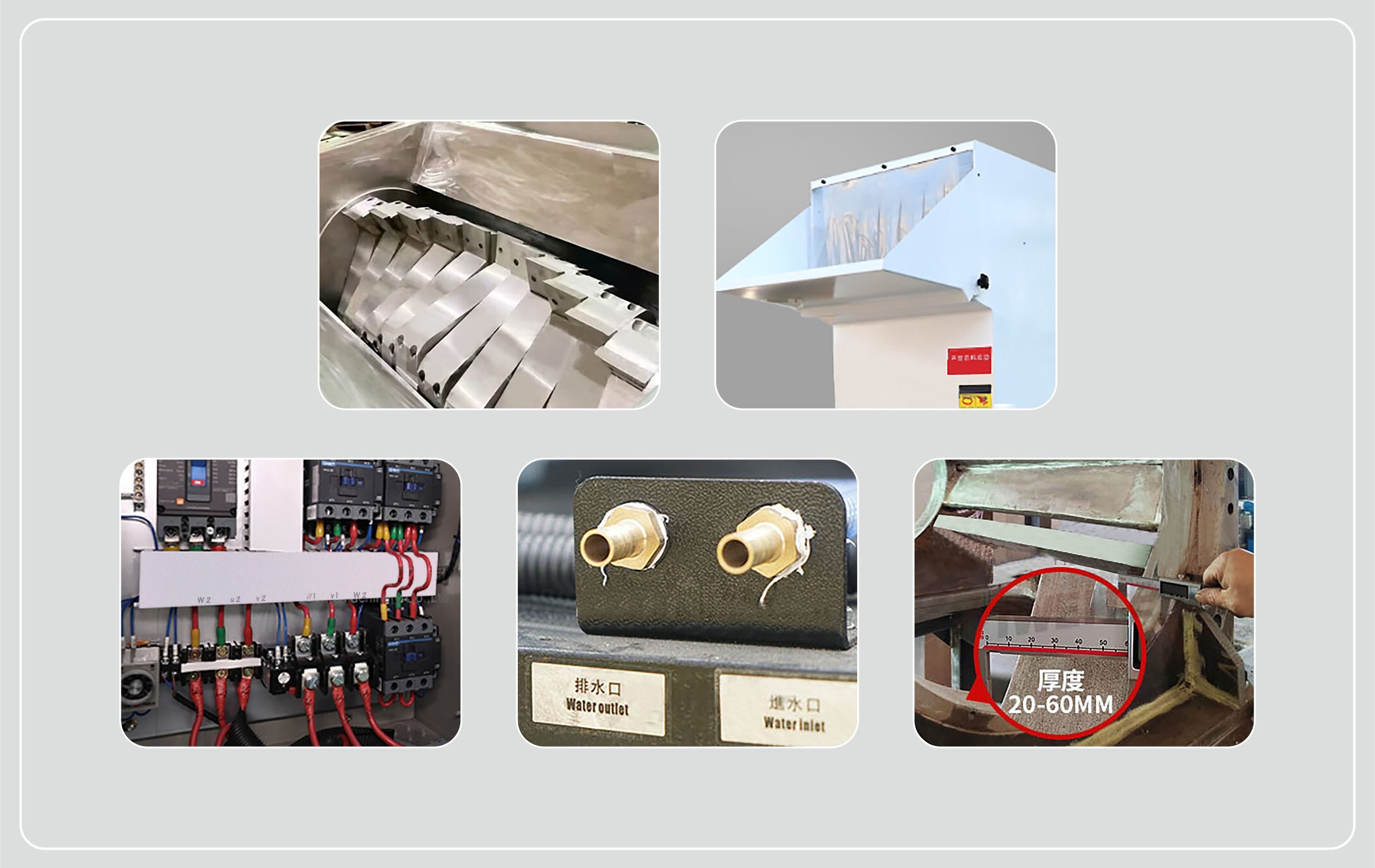

We pay close attention to product details and craftsmanship. The blade chamber is made from thickened A3 steel, effectively preventing vibration and noise. The entire chamber is crafted with precision milling and chamfering followed by an overall welding process. The feeding hopper is designed with double-layer soundproofing on all four sides. We use globally recognized brand electrical components, such as Schneider or Siemens, ensuring stable performance, safety, and reliability. For machines with 30HP or more, the body is standard-equipped with a cooling system. This system significantly reduces the temperature in the crushing chamber and the bearings, preventing the crushed material from melting and extending the lifespan of the bearings.

Let Yushine support your custom plastic crusher. We promise to do our best to upgrade and elevate your brand. Contact now!

Plastic Auxiliary Equipment Manufacturer

More About YuShine Vacuum Conveying System

ModelMotor
Power(KW)
Motor
Power(HP)
Rotary
Cutter(PCS)
Stationary
Cutter(PCS)
Crushing Chamber
(mm)
Crushing Capacity
(kg/h)
Dimension LxWxH(cm)Weight(KG)
SGD3807.51062380×240200-300100×84×139515
SGD500152062504×320300-400139×107×184900
SGD80022/3030/4094815×470450-600173×149×2302000
SGD8153750124815×520550-700183×166×2452300
SGD9603750124960×610600-800195×176×2743000
SGD1100751001241100×800800-1000265×205×3446000
ModelMotor Power(KW)Motor Power(HP)Rotary Cutter(PCS)Stationary Cutter(PCS)Crushing Chamber(mm)Crushing capacity (kg/h)DimensionWeight(KG)
LxWxH(cm)
SGP2304562230X200100-15095x62x119288
SGP3005.57.592310×200150-200100x72x129432
SGP4007.510122410×235200-250103x84x139500
SGP5001115152515×290300-350123x101x163900
SGP6001520184610×320350-450132x111x1831100
SGP80022/3030/40244815×470450-600173x149x2302000



Motor
Power(KW)
Motor
Power(HP)
Rotary
Cutter(PCS)
Stationary
Cutter(PCS)
Crushing Chamber
(mm)
Crushing Capacity
(kg/h)
Dimension LxWxH(cm)Weight(KG)
SGY25045122250×200100-20095×62×120290
SGY3807.510182380×240200-300107×84×139516
SGY4801115212480×290300-500124×94×163850
SGY5001520212504×320300-400139×107×184900
SGY70022/3030/40272700×480450-600175×143×2281800
SGY79037/4550/60274790×550600-800196×171×2773000

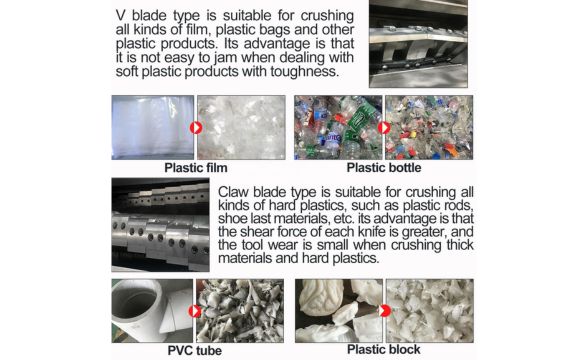

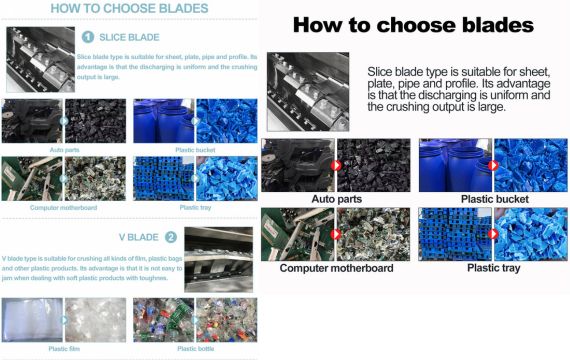

How to choose blades

How to Choose Blades?
